Interior Fuse Check: 2017 GMC Canyon SLE 2.8L 4 Cyl. Turbo Diesel Crew Cab Pickup

GMC Canyon Model Years - 2015, 2016, 2017, 2018, 2019, 2020, 2021

1. Getting Started - Prepare for the repair

2. Remove Cover - Locate interior fuse box and remove cover

3. Locate Bad Fuse - Find the fuse that is tied to the bad component

4. Remove Fuse From Fuse Box - Take out the fuse in question and assess if blown

5. Test Component - Secure the cover and test component

6. More Info. - Additional information on interior fuses

Author

Hans Angermeier is an ASE certified Maintenance and Light Repair Technician and has produced over 100,000 videos showing drivers how to fix things on their cars. He has broad expertise on basic repair procedures covering the majority of cars on the road. Over the past 10 years, Hans has been focused on building CarCareKiosk, which is visited by millions of drivers each month.

Share on   Share on Twitter   Share on Facebook
Parts & Tools
We may earn a commission from qualifying purchases as an Amazon Associate
Video Description

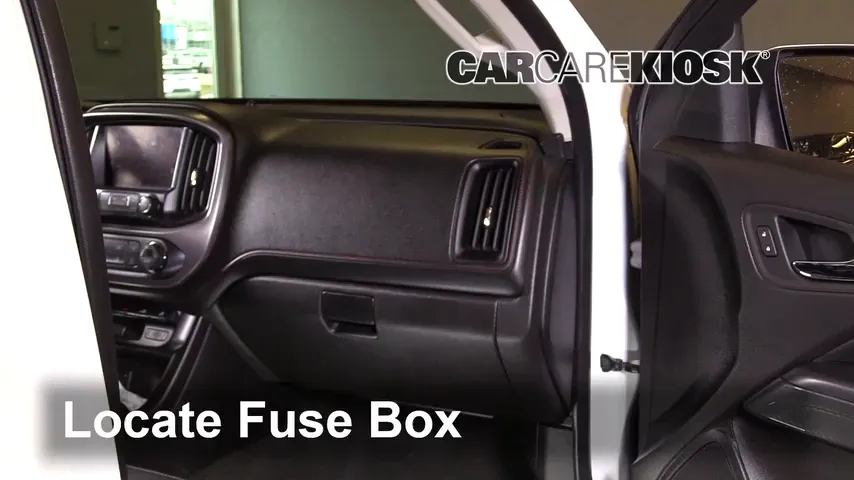

The video above shows how to check for blown fuses in the interior fuse box of your 2017 GMC Canyon and where the fuse panel diagram is located. If your map light, stereo, heated seats, headlights, power windows or other electronic components suddenly stop working, chances are you have a fuse that has blown out. If your Canyon is experiencing electrical problems, you should always check the fuses first, because they are relatively easy to check and cheap to change. Some GMCs have multiple interior fuse boxes even the trunk - the video above will show you where the interior fuse box of your 2017 Canyon is located. The more electronics your Canyon has, the more fuses it has. Some components may have multiple fuses, so make sure you check all of the fuses that are linked to the component in question.

If you need to replace a blown fuse in your Canyon, make sure you replace it with one that has the same amperage as the blown fuse. If checking and replacing the fuse for the component in question doesn't work, we recommend seeking assistance from a trusted professional mechanic. They should be able to figure out if the component needs to be replaced or if there is a short or some other problem with your Canyon.
